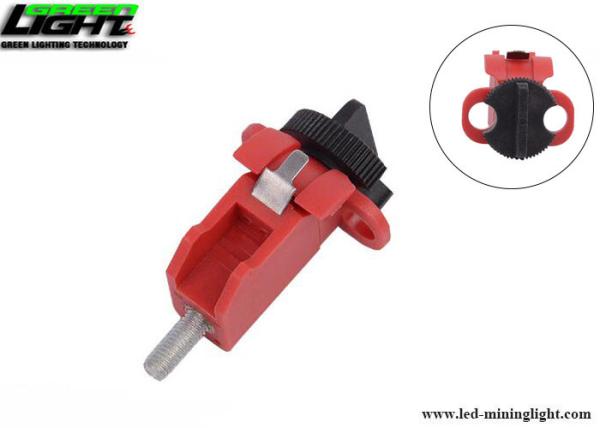

Tie-Bar TBLO Miniature Circuit Breaker Lockout requires no tools to
install
Product Features
MINIATURE CIRCUIT BREAKER LOCKOUT
a.Made from engineering plastic strengthened nylon PA
b.Fit most existing types of European and Asia Circuit Breaker.
c. Easily installed with the aid a push-button or rotate roller:
d. Available for single and multi-pole circuit breaker.
e. Recommended to use in combination with a padlock for added
safety.
f. Can use padlock with a shackle diameter up to 7 mm.
Accurate and Practical| High Cost-effective| Focus On Quality
1.Firm And Wear-resistant, Recommended using in combination with a
padlock for added safety
2Humanity Design: Made from engineering plastic strengthened nylon
PA
3.Fit most existing types of European and Asia Circuit Breaker
Miniature Circuit Breaker Lockout of Details
· Locking process is completely manual, without the aid of external
tools. You can lock switch on the air. Effective management and
control of energy.
· Bottom breaker locks with adjustable flap, flap position can be
adjusted according to the circuit breaker handle stroke.
· Locking relatively wide range can handle widths up to 23mm to 15mm
thickness of the circuit breaker lock. Locking a wide range of
products to enhance adaptability.
· Linked to keyhole aperture 7.5mm and most secure padlock can be
used in conjunction, can also be realized by means of six of the
people locked locks.
Other types of Miniature Circuit Breaker Lockout
| Model No. | Description |
| ZC-D01 | POS (Pin Out Standard), hole pitch <= 12mm |
| ZC-D02 | PIS (Pin In Standard), hole pitch <= 12mm |
| ZC-D03 | POW (Pin Out Wide), hole pitch <= 20mm |
| ZC-D04 | TBLO(Tiebar Lockout) |
Product Pictures
Circuit Breaker Lockout Range
| Model No | Details |
| ZC-D01 | Miniature Circuit Breaker Lockout, PinOut Standard |
| ZC-D02 | Miniature Circuit Breaker Lockout, Pin In Standard |
| ZC-D03 | Miniature Circuit Breaker Lockout, Tie Bar Lockout |
| ZC-D04 | Miniature Circuit Breaker Lockout, PinOut Standard |
| ZC-D10 | Universal Miniature Breaker Lockout, Multi-funcational MCB lockout |
| ZC-D11 | Clamp-on Breaker Lockout, 120-277V 15*13*137.5px |
| ZC-D12 | Clamp-On Breaker Lockout , 480-600V 25.5*17*225px |
| ZC-D13 | Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px |
| ZC-D06 | Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm |
| ZC-D07 | Molded Case Circuit Breaker Lockout, 125mm*63mm*40mm |
| ZC-D21 | Snap-On Breaker Lockout, 120V, 55mm*9mm*21mm |
| ZC-D31 | Plug Lockout , 110V,220V,550V |
| ZC-D41 | Plug Lockout , 110V,220V,550V |
| ZC-D51 | Emergency Stop Lockout , 22mm |
| ZC-D52 | Emergency Stop Lockout , 30mm |
| ZC-PM01 | Pneumatic Quick-disconnect Lockout, Fitted with 6.4mm, 9.5mm &
12.7mm screwed joint |
| ZC-PM11 | Air Source Lockout, Available for 8-45mm vales |
| ZC-PM21 | Cylinder Tank Lockout, |
| ZC-PM31 | Gas Cylinder Lockout |
Why Use Lockout/Tag-out
Due to the high rate of industrial accidents caused by an
unexpected organization, start-up od machines or equipment,
uncontrolled release of energy, reducing industrial accidents
becomes one of today’s most serious issues. LOCKOUT/TAGOUT is a
planned safety procedure that disables the energy supply of
industrial machinery and equipment whilst servicing, maintenance
work or repairs are in progress. Many of industrial accidents can
be prevented by proper LOCKOUT/TAGOUT procedures.
Making the right kind of LOCKOUT & TAGOUT equipment available to
the employee is the responsibility of the plant’s management.
Application
Safety Lockout is widely used in the Chemical, Electrical, Automobile industry, and so on.
• Employers, supervisors, and employees all have individual
responsibilities regarding lockout under the HSE Act.
• Lockout is important for operators, maintenance staff,
contractors, cleaners, and any other person required to work near
moving parts of machinery.
The safety lockouts and equipment are environment friendly, our
company is equipped to cater and offer the best safety products for
different segments of industries such as Construction,
Petrochemicals, Pharmaceuticals, Power plants, Mining, Iron and
steel, etc. We supply various high quality and durable safety
lockout devices for the safe operation and identification of
hazards.
