GL-112V1 UWB System Forklift and People Collision Avoidance Safety Equipment .

Specifications

Hidder Danger

It occurs many forklift collision accidents every year. Even be careful of forklift safety every day.

There are a large number of accidents in the factory due to the sight blocking, blind spots, impact,

crashes, ..etc. resulting in serious consequences such as production stop, large compensation.

Products features:

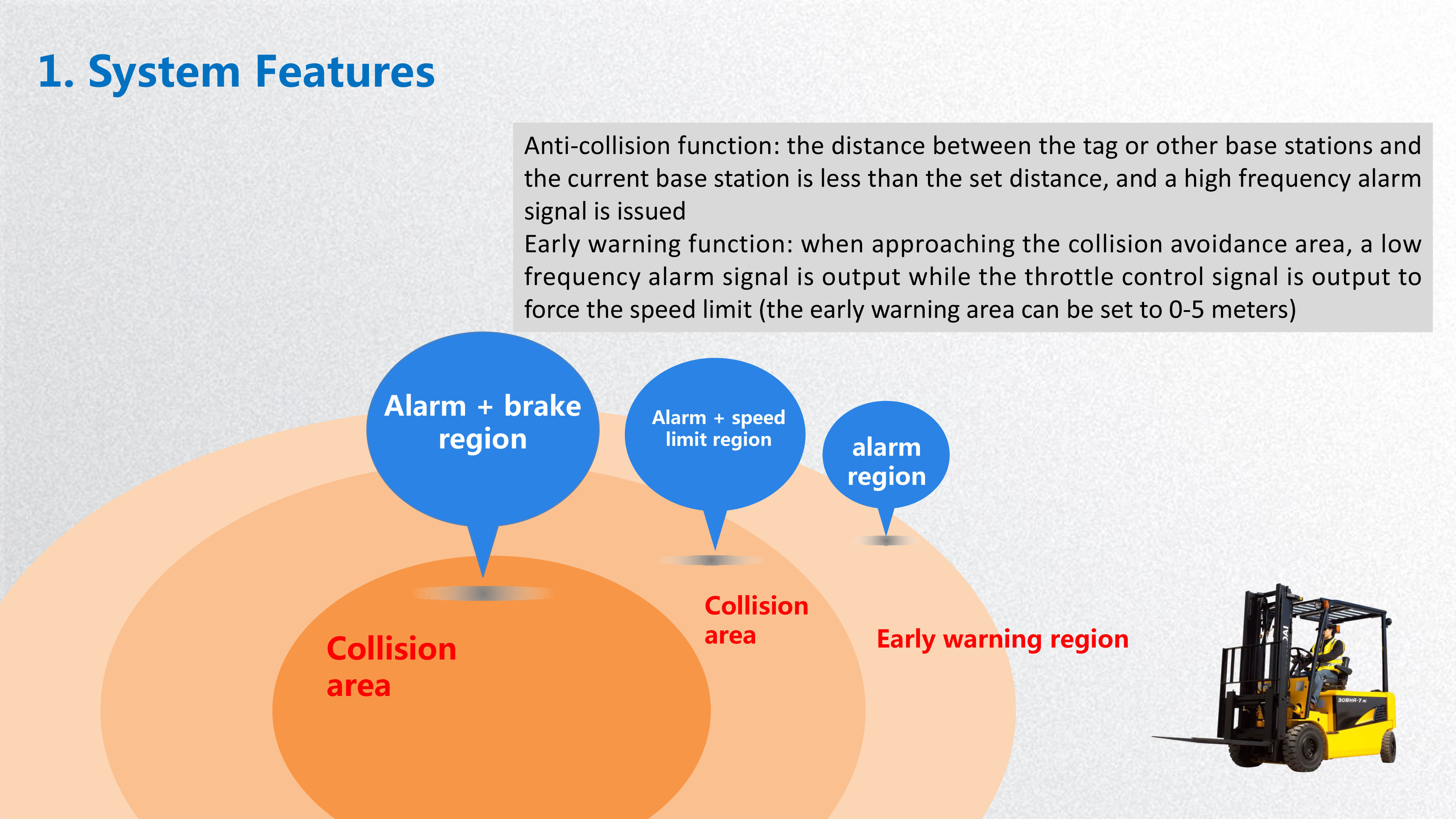

1.Anti-collision function: the distance between the tag or other base stations and

the current base station is less than the set distance, and a high frequency alarm

signal is issued.

2. Early warning function: when approaching the collision avoidance area, a low

frequency alarm signal is output while the throttle control signal is output to

force the speed limit (the early waming area can be set to 0-5 meters)

3. Forklift speed control management three levels of speed alarms canbe preset and the alarm methods will be different for different levels.

(1) First-level speed alarm:when the forklift speedreaches XX per hour, thewarning light flashes to indicate a warming ；

(2) Secondary speed alarm:When the vehicle speed reaches Xx per hour, the horn sounds and the warning lights flash.

(3)Three-level alarm:When the vehicle speed reaches xx after a certain period of time.

the horn sounds and the warning lights are warned and locked; and the forklift is limited in speed,

Instructions :

Accurately measure the exact distance between the label (wristband or badge) on the helmet and

the base station on the vehicle, 0.1 ~ 100 meters can adjust the alarm distance, enter the alarm.

Products Advantages.

Using wirless pulse technology , by fixing the host device on the forklift, real-time monitoring relative distance

between P-tag and host within 100M diameter range, the precision is 10cm. According to the distance, judge

the degree of the danger, annouce differrent levers of audible and visible alarm, effectively prevent and eliminate

high-risk accidents such as forklift collision and crushing employees,

Multiple Scheme, Making your warehouse a safer palce.

1. Pedestrain & Forklift collision avoidance solution .

• Prompt area: when the vehicle and pedestrain enters the warning area, it will give a sound and light prompt.
• Warning area: when the vehicle and pedestrain enters the collision avoidance area, a high frequency alarm is issued.
• Speed limit area: when the vehicle and pedestrain enters the speed limit area, the forklift automatically speed limited.

2. Vehicle and object collision avoidance warning scheme.

• Three levers speed alarm
• auxiliary driver brake
• Anti-collision
• Sound and light warning

3. Forklift reverse aid solution.

• Industrial design standards
• High precision ultrasonic detection
• Mutiple types of probe holders are available
• HD waterproof camera
• 7 inchi TFT HD display

All products accept customized services, we hope you will tell us your problems and situations, let

us make products more suitable for your application .
