forklift vehicles safety system keep forklift vehicles and workers
distance safe to prevent collision accidents
Forklift safety management products
Vicious accidents lead to : suspension of production lines, major
compensation, and accountablity for accidents.
Following is the situation would happen accidents:
1. Speed like a tiger, warning and speed limit are the key..
2. Visual dead angle cannot be avoided; wireless sensing and
accurate ranging warning technology are safer.
3. Speding / Rolling / Cornor crash fatigue driving / Reversing /
Perspective blind spots.
* Solution System Features:

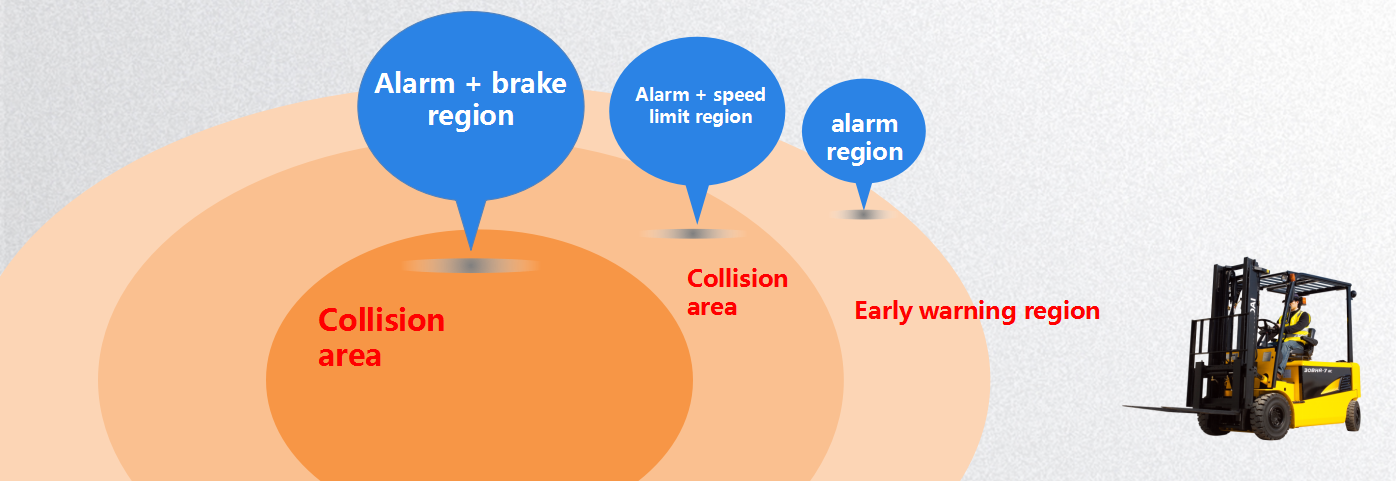

1. Anti-collision function: the distance between the tag or other base stations and the
current base station is less than the set distance, and a high
frequentcy alrm signal is issued.
Early warning function: when approaching the collision avoidance
area, a low frequency alarm signal is output while the throtte
control signal is output to force the speed limit (the early
warning area can be set to 0-5 meters)
2. High-precision distance measurement: real-time measurement of the precise distance of a tag within a
radius of 1-100m, with an accuracy of 10cm.
3. Forklift speed control management: three levels of speed alarms can be preset, and the alarm methods
will be different for different levels.
* Accossories Introduction:
 |  |  |  |

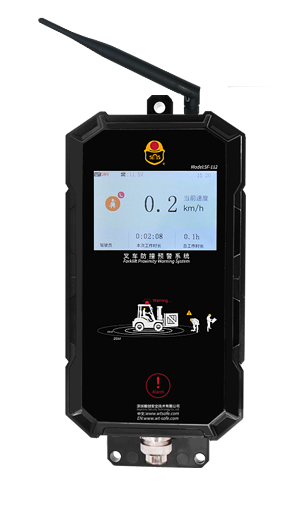

| Station | Label | Wristband | Badge |
Rated voltage: 12V-48V DC Size: 120 × 120 × 61 (mm) Working temperature: -20 ℃ — 50 ℃ Frequency band and distance: UWB (Ultra-Wide Band) 6240–6739.2MHz Detection distance: 5-50m Number of tags: 50 Antenna: built-in antenna Housing: ABS, waterproof Gross weight: about 270g | Power supply: built-in 550mAh rechargeable lithium battery Size: 40 × 40 × 20 (mm) Working temperature: 0-50 degrees Celsius Frequency band and distance: UWB (Ultra-Wide Band) 6240- 6739.2MHz Antenna: built-in Housing: ABS Gross weight: about 38g | Power supply: built-in 550mAh rechargeable lithium battery Size: 40 × 40 × 20 (mm) Working temperature: 0-50 degrees Celsius Frequency band and distance: UWB (Ultra-Wide Band) 6240- 6739.2MHz Antenna: built-in Housing: ABS Gross weight: about 38g | Power supply: built-in 550mAh rechargeable lithium battery Size: 40 × 40 × 20 (mm) Working temperature: 0-50 degrees Celsius Frequency band and distance: UWB (Ultra-Wide Band) 6240- 6739.2MHz Antenna: built-in Housing: ABS Gross weight: about 38g |

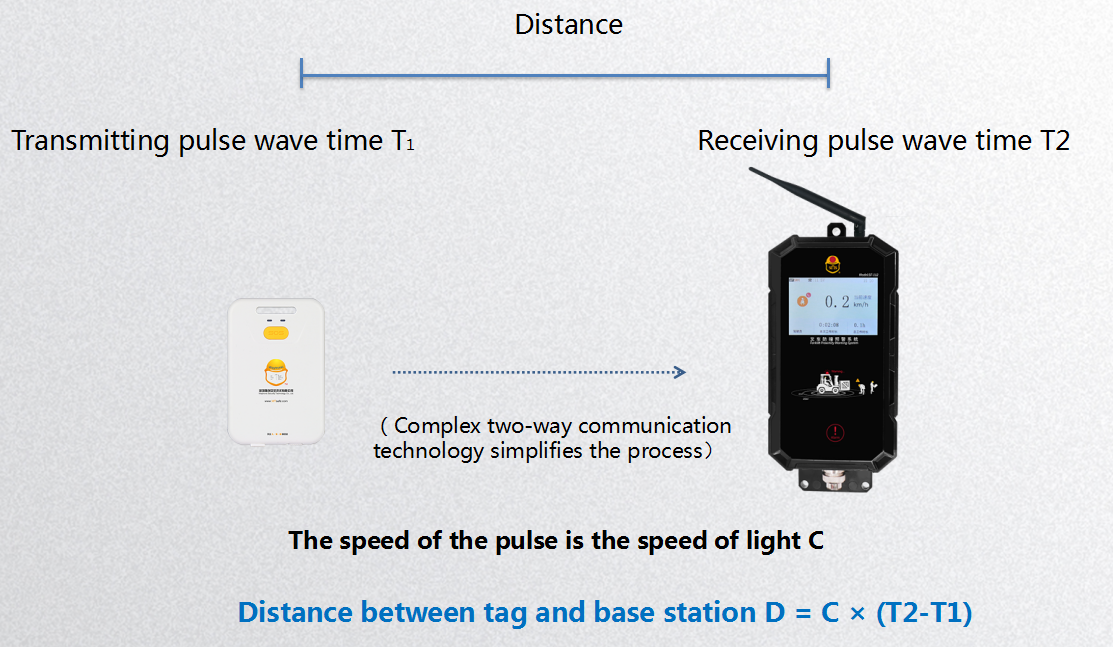

* Technical Principle:
* Solution Basic Functions:
1. Three-level speed alarm
Forklift speed control mangement threes of speed alarms can be
preset.
2. Speed limit system
Forklift speed control management: three levels of speed alarms can
be preset.
3. Unique ID
The micro base station installed on each vechicle, the micro-tag
worm by employees, the unique ID of the entire network, and the
driver
and other employee IDs are different. The driver is an
anti-collision warning for other vehicles except the vehicle he
drives. Crash alarm.
4. Distance accurate measurement
Get precise distance, alarm and speed limit according to the
anti-collision distance and prevention distance set by the remote
control,
and even stop. If the collision prevention distance is set to 5
meters and the prevention distance is 2 meters, the alarm will be
triggered
when entering 7 meters and the speed limit when entering 5 meters.
5. Trigger an alarm
Obtain the precise distance and alarm according to the set alarm
distance. If set to 7.5 meters, enter the 7.5 meter circle to
trigger the
alarm. The setting range is 0.1 meters to 100 meters.
6. Multiple alarm modes
Gradual alarm: the louder it gets closer; b. Voice alarm:
"Forklifts pass by, please don't approach"; c. Multi-level warning:
the sound of each level is different.
7. Intelligent management function
Can record and output the number close to the person, can cut off
the vehicle power, tag can customize the vibration, and upgrade the
full-field positioning module..
* System solution Applications:
1. Corner anti-collision warning system
The corner anti-collision warning system uses femtosecond speed
ranging to accurately determine whether the person is in the corner
area,
and reminds the plant personnel to maintain a safe distance from
the form vehicle to avoid collision.
2. Anti-collision warning at crossroads
Area-specific speed limit strategy: When the vehicle travels to a
set area, the speed limit is automatically set.
3. Anti-collision at the entrance
A rangefinder host is placed on the top beam of the doorway, and a
tag is placed on the vehicle body.
When the forklift is ready to enter and exit the doorway, the
rangefinder host will sound and light alarm to remind you to pay
attention to pedestrians and pass safely.
* Application Object:
Internal combustlon forklift;
Electric balance forklift;
House aisle forklift;
Stacker;
Forklift forward;
Mining machine;
Loading car;
Excavator;
Gantry crane;
