Lightweight High Lumen Led Headlamp Miner Cap Lamp Explosionproof
Waterproof IP68
Features of GLC-6S Lumen Led Headlamp:
1. All in One Miner cap lamp with OLED screen
2. 13000lux strong brightness work light;
3. 6800Ah Panasonic battery pack (long time usage);
4. IP68 waterproof, anti-explosive, impact-resistant, flame
resistant;
5. Small size and lightweight
6. Magnetic lighting spot supports USB charging.
7.Adjustable stainless steel clip for the lighting angle change.

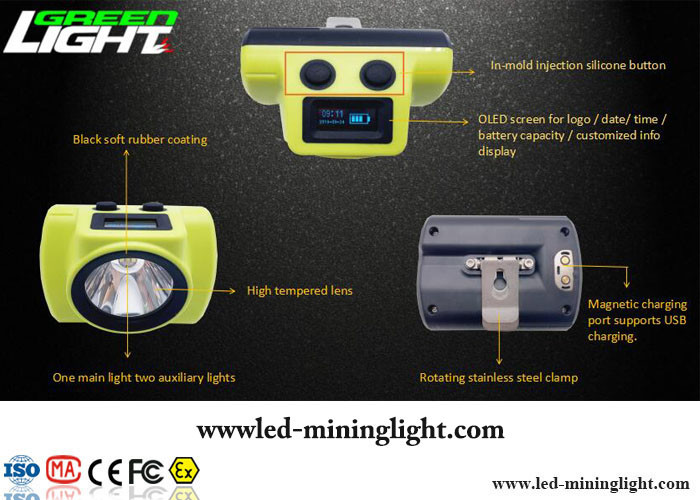

Lumen Led Headlamp detail:
Lumen Led Headlamp Specification:
| Item | Value |
| Model | GLC-6S cordless cap lamp |
| Light source | one main light two auxiliary lights |
| Battery Capacity | 6.8Ah |
| Rated Voltage | 3.7V |
| Main light current | 400mA - 530mA - 1000mA |
| Power of main light | 2.96W |
| Illuminous | 385lum |
| Brightness | 9000lux - 14000lux - 18000lux-25000lux |
| The life span of the main light | 100000hrs |
| Battery cycles | 1200 cycles |
| Working time | 17hrs - 13hrs - 6hrs |
| Weight | 245g |
| Water-proof grade | IP68 |
Main parameter of Lumen Led Headlamp:
| Item | GLC-6(S) | GLC-6(B) | GLC-6(C) | GLC-6(D) | GLC-6(E) |
| Light source | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL | 1MA and 2AL |
| Battery capacity | 6.8Ah | 6.8Ah | 2.6Ah | 3.4Ah | 5.2Ah |
| Rated voltage | 3.7V | 3.7V | 3.7V | 3.7V | 3.7V |
| Power of main light | 4.2W | 2.22W | 1.3W | 1.3W | 1.3W |
| Brightness of ML | 25000lux | 13000lux | 4000lux | 6000lux | 10000-12000lux |
| Illuminous of ML | 348lum | 222lum | 130lum | 130lum | 130lum |
| OLED screen | yes | yes | no | no | no |
| Working time | 5hours | 15hours | 13hours | 13-15hours | 15-18hours |
| The life span of the light source | 100000hours | 100000hours | 100000hours | 100000hours | 100000hours |
| Battery cycles | 1200 | 1200 | 1200 | 1200 | 1200 |
| Charging time | 4hours | 4hours | 4hours | 4hours | 4hours |
| Weight | 200g | 205g | 140g | 140g | 160g |
| Ingress protection | IP68 | IP68 | IP68 | IP68 | IP68 |
| Certificate | CE, Atex, RoHS | CE, Atex, RoHS | CE, Atex, RoHS | CE, Atex, RoHS | CE, Atex, RoHS |

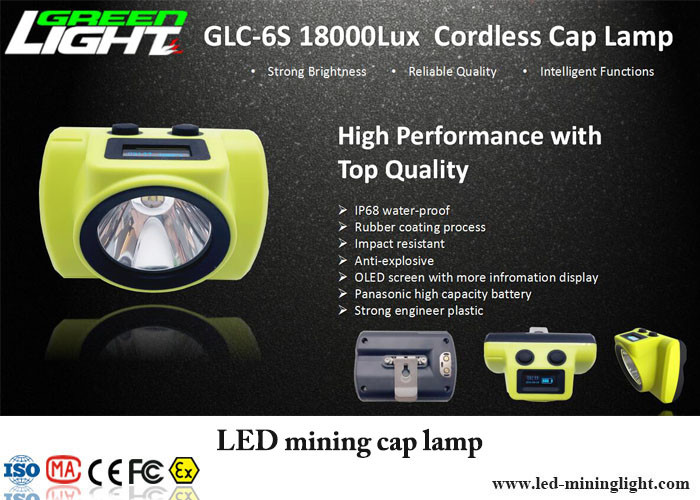

Lumen Led Headlamp Images:
Waterproof Rechargeable Headlamp Video:
Waterproof Rechargeable Headlamp Application:
Widely used in petrochemical, chemical,
nuclear power, military automobile, Tunnel Project,
Mountian-climbing, hiking, Patrolling, Overhauling,
Emergency in an electrical power company,
Mine, Military, Police, Fire Fighting and other hazardous
locations, etc.
About us GREEN LIGHTING TECHNOLOGY CO., LTD
We are dedicated to led underground mine lights since 2006.
We have engineers of appearance, function, new design, drawing.
Strict Controlled quality from raw material to finished products.
OEM/ODM Service.Trial Order available. we will offer the samples for your testing.
Customization service according to customers' feedback and
requirement.
We have long-term cooperations with South African and Canadian
customers (who can plant tracking systems to cap lamps).
The high safety cap lamp is a trend.
We are researching and developing RFID/NFC to plant into cap lamps
for real-time tracking.
