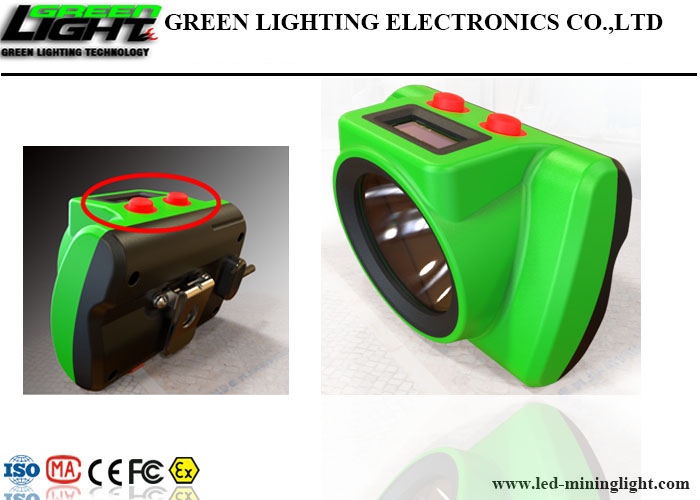

LED Cordless Cap Lamp With OLED Screen Can Install Tracking System
Small Size Lightweight
Product details
1.GLC-6S Mining Lamp is Green Light Latest cordless cap lamp, uses
CREE 3W high power white led as main light, 2pcs SMD LEDs as the
auxiliary lights, and designed with high capacity 6.8Ah
rechargeable Li-ion battery.
With the specially designed reflector maximum is 13000lux. Lighting
duration is more than 18 hours, 4 hours charging time with USB.
2.OLED Display the battery status, time, date and client's company
information.
This cap lamp can be used in Mine, underground working, Patrolling,
Overhauling and Emergency in an electrical power company, Military,
Police, Fire Fighting, Dockyard, and other hazardous locations,
etc.
Features:
1.OLED screen for immediate, battery capacity, logo or other
information display
2. 13000lux strong brightness with good optical lighting spot
3.Adjustable stainless steel clip for lighting angle change
4.Magnetic lighting sport with IP68 water-proof and support USB
charging
5.Small size and light in weight.More handy switch for convenient
touching
7.OLED Display the battery status, time, date, and other customized
information
8. All our mining safety cap lamps have a one year warranty. We
will keep free maintenance for you in one year
Specification
| Item | Value |
| Model | GLC-6S cordless cap lamp |
| Light source | one main light two auxiliary lights |
| Battery Capacity | 6.8Ah |
| Rated Voltage | 3.7V |
| Main light current | 900ma (strong) - 480mA (normal) |
| Power of main light | 3.3W (strong )- 1.78W(normal) |
| Illuminous | 430lum(strong)- 232lum (normal) |
| Brightness | 25000lux (strong) -13000lux (normal) |
| The life span of the main light | 100000hrs |
| Battery cycles | 1200 cycles |
| Working time | 4-5hrs (strong) ,14-16hrs (normal) |
| Weight | 200g |
| Water-proof grade | IP68 |
Special requested
1. May you provide LOGO us to manufacture.
2. High quality and competitive price.
3. Can according to your requested to design new item that suitable
for your market.
4. Above is only for your reference, we can custom make as per your
request.
5. We sincerely welcome foreign friends who have the need for
export.
Our advantage
Appearance
Strong ID Team, According to the client's market positioning, use
condition to design product shape, pattern, and color. Recently,
customized the semi-corded, corded, cordless with Tracking position
and Infrared receiver
Electronic Circuit
Rich Experience Software and Hardware Engineers, PCB's Design and
Layout. LED Driver, Charging circuit, Battery Protection Circuit
and so on.
Write the request to cap lamps, such as clients company name, LOGO,
series No and user name.
Structural Design
Professional MD Team, provide IP68 Waterproof, ATEX
explosion-proof, Dust-proof Products, 10 years of work experience
in the underground field. Very familiar with miner's lamp industry
products. MD team will field visit and according to the use
condition to design the waterproof.
Optical Design
According to LED Luminous Flux, Light cup curve and current to
design the Light Beam.
