Description of Underground Miner Cap Lamp
This new cap lamp uses Li-ion batteries which can keep the lamp
more than 13 hours continuous working time. The motherboard is
designed with short-circuit, over-charging, over-discharging
protection. And it is also high temperature and low temperature
resistant. It is also waterproof, anti-explosive, compact
resistant, fire retardant to keep safety use.
Features of GLS12-A Led Cap Lamp:
15000lux high beam corded lamp.
One Main light and two auxiliary lights.
Safety reliable and free maintenance.
Lightweight 392g and 6.8Ah big capacity.
Low power warning function for safety lighting.
Rear warning light with red, green, blue three colors for options.
Safety rope for lamp falling down searching.
Anti-explosive, flame-resistant, impact-resistant, IP68 Waterproof.
Aluminum lighting cup with better lighting spot.
Charger: USB charger (USB cable) ,cradle charger (battery part) or
cradle charger (lamp head part).
Advantages of Led Lights for Mining Equipment:
Light weight comparison with corded cap lamp
Safety rope to avoid fallling down
Rear waring light with red, green, blue color up to options
(comparison with cordless cap lamp)
Specification of Led Mining Cap Lights
| Item | Value |
| Model | GLS12-A |
| Light source | 1pc Cree led and 2pcs SMD leds |
|
| Battery capacity | 6.8Ah panasonic battery pack |
| Rated Voltage | 3.7V |
| Main light current | 450mA |
| Power of the main light | 1.7W |
| Illuminous | 221LUM |
| Brightness of the main light | 15000lux |
| Life span for main LED | 100000hours |
| Battery cycles | 1200 cycles |
| Working time | 13-15hours |
| Weight | 396g |
| Water-proof grade | IP68 |
Usage of Coal Mining Lights
Widely used in petrochemical, chemical, nuclear power, military
automobile shipbuilding industries, suitable for oil pipelines,
cable interlayer, platform channel, pump house , Tunnel Project ,
Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in
electrical power company,Mine , Military, Police, Fire Fighting,
Dockyard and other hazardous locations ect.
Accept Customized as client's requirements:
Appearance
Strong ID Team, According to client's market positioning, use
condition to design product shape, pattern and colour. Recently,
customized the semi-corded, corded, cordless with Tracking position
and Infrared receiver
Electronic Circuit
Rich Experience Software and Hardware Engineers, PCB's Design and
Layout. LED Driver, Charging circuit, Battery Protection Circuit
and so on.
Write the request to cap lamps, such as clients company name, LOGO,
serie No and user name.
Structural Design
Professional MD Team, provide IP68 Waterproof, ATEX
explosion-proof, Dust-proof Products, 17 years work experience in
underground field. Very familiar with miner's lamp industry
products. MD team will field visit and according the use condition
to design the waterproof.

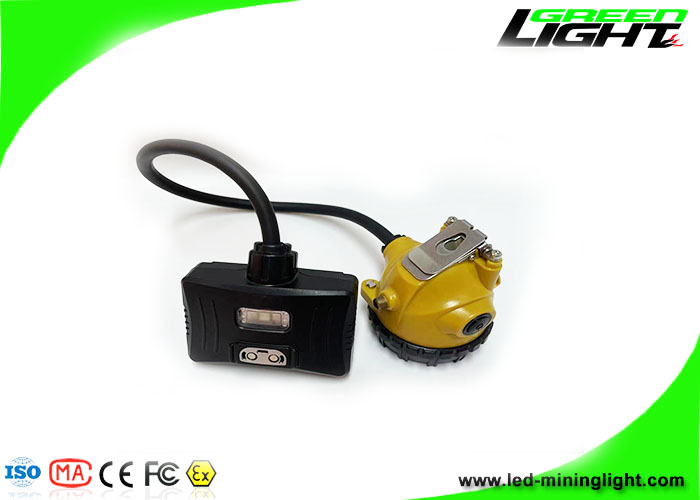

Flash Coal Mining Lights Picture
