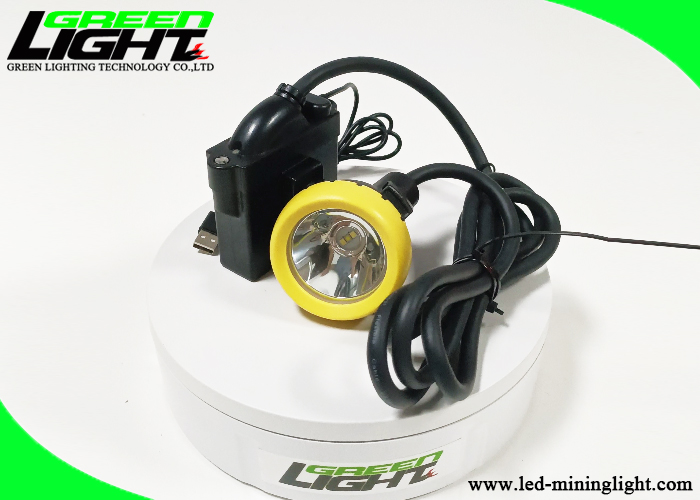

High brightness 10000 lux miner cap lamp with led battery status,
16 hours fire time used for coal dark mine with IP68
*-* Main features:
1. One main light and two auxiliary lights;
2. 6600mAh or 7800mAh Li-ion rechargeable battery pack with high
quality;
3. 216 LUM and 10000 LUX high brightness;
4. High capacity support more than 16 hours lighting time;
5. With low power warning function for safety lighting;
6. Lamp head with silicone button cap with good touch.
7. Support traditional plug-in charging and battery case USB
chagring;
8. Lamp protection: Over-charging, over-voltage and over current
protection;
9. Performance: Anti-explosive, flame-resistant, impact-resistant,
waterproof IP68.
*-* Specifications:
| Model No. | GL5-D | GL8-D |
| Light source | 1 main light and 2 auxiliary lights | 1 main light and 2 auxiliary lights |
| Battery capacity | 6600mAh | 7800mAh |
| Rated voltage | 3.7V | 3.7V |
| Main light current | 450mA | 450mA |
| Power of main light | 1.67W | 1.67W |
| Illuminous | 216 LUM | 216 LUM |
| Brightness | > 10000 LUX | > 10000 LUX |
| Life span of main light | 100000 hours | 100000 hours |
| Battery cycles | 1000 cycles | 1000 cycles |
| Working time | 16 hours | 18 hours |
| Weight | 420g | 420g |
| Water-proof grade | IP68 | IP68 |
*-* Warning:
Do not charge this device in hazardous areas!
* Charging with charger rack:
1. Clean device before charging.
2. Place the cap lamp on the key charger correctly with key way
aligned.
3. Turn the cap lamp 180 degrees to begin the charging process. A
red light will illuminate on the charger.
4. Charging will take approximately 6 hours, except when the
battery is completely discharged in which it will take
approximately 12 hour.
5. A green light on the charger will indicate complete charge -
ready for use.
* Charging with USB charger:
1. Clean device before charging.
2. Place the supplied USB connector magnetic adaptor on the top of
the battery enclosure as shown.
3. Insert the other end of the USB connector into a USB power
source.
4. Charging will take approximately 6 hours, except when the
battery is completely discharged in which it will take
approximately 12 hours.
Notes: USB charging time will depend on the current output if your
USB power source.
*-* More photos for showing:
*-* Applications of led miner cap lamp:
Mining, Patrolling, Overhauling and Emergency, Tunnel Projects,
Police, Railway Construction, Public Security, Oil Field. Steel
Milling, Night-Power Communication, Fire Fighting, Dockyard & other
hazardous locations, Camping, Hunting etc.
*-* Q & A:
Q1. Are you importer or manufacturer?
A: We are factory, dedicated in design and manufacture led
industrial lights over 17 years located in shenzhen .
Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q3. What is the lead time?
A:Sample needs 5-7days, mass production time needs 25-30days.
Q4. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on
different type battery/battery pack)
Q5. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7
days to arrive.
Q6. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make
payment-Arrange production-ship the goods to
customers-Confirmation-Finish-After service.
Q7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q8. Do you accept OEM/ODM?
A: Yes, it’s available.
Q9. Shall we can be customize mining lights as my requirement?
A: yes, we are plesure to design and produce new headlamp for you.
Q10. Do you have any sales sevivce?
A: Yes, we do 1 Year Warranty for any of our products, and we will
still be resposible for you after cooperation
