Multi-Purpose Cordless Miners Cap Lamp Super Bright Rechargeable
Led Headlamp With USB Charger
1. Feature for Cordless Mining Lights
Waterproof grade: IP68
High Beam Brightness : >4000LUX
High-Quality Material: Germany Bayer PC
Portable Light Weight: 171g, similar to the weight of a cell phone, more portable.
Multi-function lighting modes: main light - auxiliary light
| Item | Value |
| Model | GL2.5-C |
| Light source | 1pc main light and 6pcs auxiliary lights |
|
| Battery capacity | 3.8Ah |
| Rated Voltage | 3.7V |
| Main light current | 300mA |
| Power of the main light | 1.1W |
| Illuminous | 143LUM |
| The brightness of the main light | 10000lux |
| The life span for the main LED | 100000hours |
| Battery cycles | 1000 cycles |
| Working time | 13 -15 hours |
| Weight | 170g |
| Water-proof grade | IP68 |
| Certified | CE, ATEX, EXIB II M1 |
2. General Guide PICTURES
3. Our products can be widely used for :
- camping, traveling, cycling
- tool, maintenance lighting
- fishery, diving, fire-fighting
- military, architecture, living
- furniture, farm lighting
- night fishing, car-carrying, road, and railway lighting, forest
farm
4. Product Advantages:
Safety: Over-charging protection, over-discharging protection, protection
in electrical short-circuit,
automatic power-off on the socket, 100,000 hours LED’s Lifetime

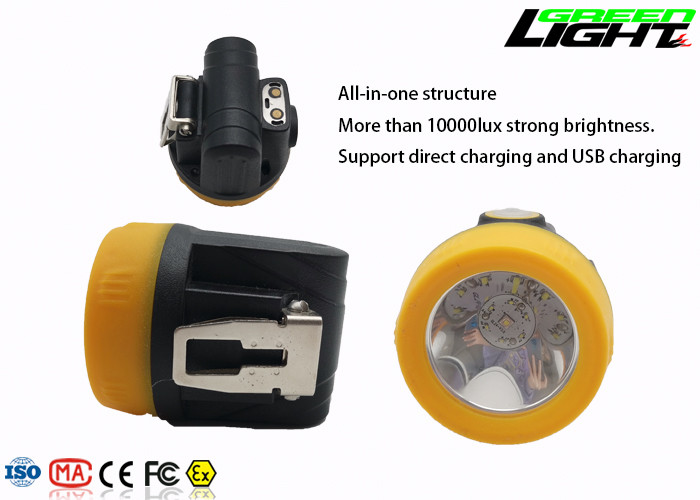

Portability: All-in-one structure, Small in size, light in weight (only 171g
for the whole product),
inductive charging, easy usage
Efficiency: more than 15hours at full brightness, over 80hours at backup led
brightness.Over4000lux
Brightness
Environmental: Li-ion battery is free for maintenance, and the material of li-ion
is environmental, use
1Watt high power LED as the main light, and 6pcs backup LED’s to
save power
Economy: three times longer than lead and acid cap lamp and saving in
maintenance makes the product
more compatible in price
Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous
discharging time: more than 15hours at full brightness, over
80hours at backup led brightness.
Type of protection: IMI EXia IICT6 (Zone 1 and 2)
Protection category: IP68
5.Troubles and troubleshooting
| Description | Analysis | Troubleshooting |
| Light is not bright | Switch contact is bad / Led source is broken | Inspect the switch, measure the circuit, If the switch contact is good, then check the voltage of LED and the circuit or contact the manufacturer. |
| Not Light enough time | Undercharge | First, check the contact points, and then charge according to the regulation. |
New lamp use without cycle charge before | Precycling charge according to the regulations. |
| The Lifespan of the battery is over | Replace the new lamp |
| Illumination is not enough | Low battery voltage | Measure the battery voltage, ensure charging time up to 7hours. |
| The glass is serious pollution | Can wash the lens surface of the lamp by water. |
The lamp can't charge or long charging time | Charger (rack) a breakdown or battery damages, charge manager fault | Check the charger's output voltage and current, if all is normal, check the battery, measure its internal resistance and capacity. If not up to technical requirements, replace charger or contact with the manufacturer. |
| Can't rotate on a fixed point | The screws of the clip are started | Fasten the screw appropriately |
Correct Use:
The GREEN LIGHTING cordless cap lamp is a camera miner’s safety lamp.
The device is attached to a safety helmet, designed to accommodate front-mounted attachments, and its power source, battery and housing, are integrated into the cap lamp housing.
The device is primarily designed for underground mining activities and emergency services.
Transportation: The transport process is not allowed by the severe
mechanical shock and exposure Rain, prevent throw throwing,
rolling, pressure.
Storage: miner's lamp should be stored at ambient temperature
0~40℃, with a relative humidity of 45%-90%. Dry, clean, and
well-ventilated, non-corrosive medium warehouse, should stay away
from fire and heat, If long-term storage, please filled to 80% of
capacity, and charge about 5hours after three to four months.
CAUTION:
This product supports life and health in an underground
environment.
Inappropriate use, maintenance, or tampering may affect the
function of the device and
therefore compromise the product’s ability to support life and
protect against harm
ATTENTION:
When using the GREEN LIGHTING Cordless Cap Lamp the following safety instructions must be
observed:
• Device shall be operated by qualified personnel.
• Before each use, check the functionality of the device.
• Be aware of the procedures for handling electrostatically
sensitive electronics, which include GREEN LIGHTING cap lamps.
• This device contains electrostatically sensitive components. Do
not open or repair the device without using appropriate
electrostatic protection.
• Be aware of the warranty regulations.
• Do not charge in hazardous areas.
• Charge only with approved charging devices.
