Brand Name : | Green Lighting |
Model Number : | GL6-B |
Certification : | CE, ATEX,ROHS |
Price : | negotiable |
Payment Terms : | L/C, T/T, Western Union for 100% Payment Before Delivery |
Supply Ability : | 10000 pieces per month |
Delivery Time : | sample order for 3-5 working days, bulk order within 10-25 working days |

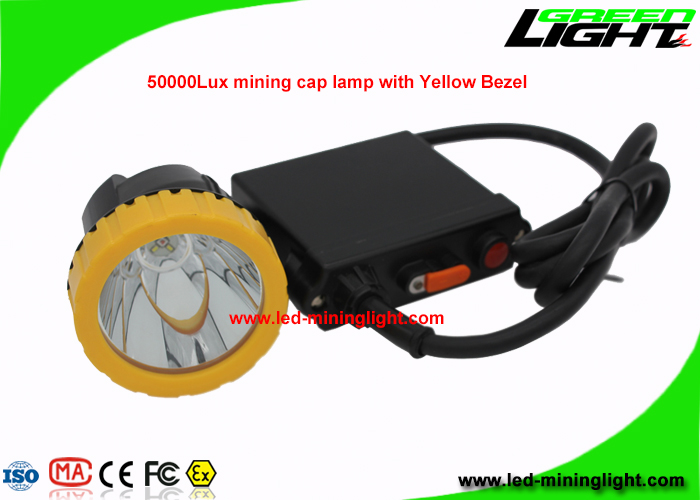

High Safety 11.Ah 50000Lux Underground LED Coal Mining Lights For
Hunting
Main Features for Model GL6-B hunting lights:
1.Material:
1) anti-impact engineered polymer resin(ABS)
2) Silicone button and Soft touch
3) Defence grade: IP68
2.Humanization design:
1)Invagination design of charging contact hole is sturdy and
durable
2)Stainless steel cap hook clamp design
3)Durable in use
3.Circuit design:
1) Constant current circuit, constant luminance
2) Set up charge manager inside
3) Protection function of overcharge, over-discharge and short
circuit
4.Lamp holder design
Fixed anti-dismantling screws can prevent accidental opening under the mine
5.Light source and light cup design
1)Imported LED light source
2) Spinning aluminium alloy light cup
3) Good gathering effect High luminance, Good heat dissipation
6.Power supply
1) Adopt the self-developed lithium battery 18650
2) Safety signs licence
3) Explosion -proof inspection certificate
Main parameter of rechargeable headlamp:
Model | GL6-B |
Light Source | 1ML and 4AL |
Rated voltage | 3.7V |
Main Light current | 1000mA |
Power of main light | 3.7W |
Illuminous | 650lum |
Brightness | 50000lux |
Life span of main light | 100000hours |
Lighting working time | 13hours |
Battery cycles | 1000cycles |
Color | yellow and black(can be customized) |
Waterproof grade | IP67 |
Certificate | CE, ATEX,ROHS |

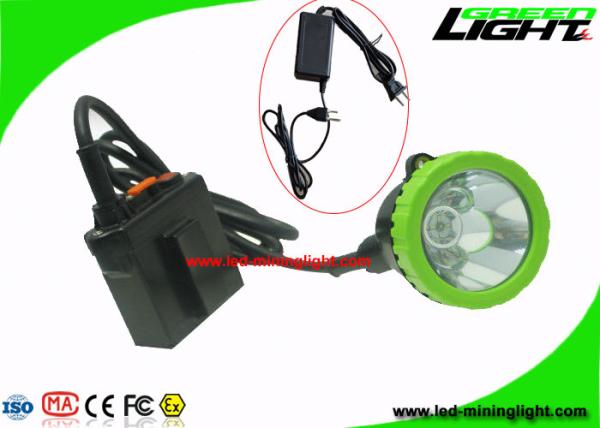

Charging as below picture shown:
Application
LED Cap Lamp Trouble Shooting:
1. If abnormal phenomena happen but the lamp is in the normal using
status,must be
careful to check the reason firstly.Then deal with the problem.
2. The lighting time is not enough
No | Reason | Treatment |
a | No enough charging | First,should check if the connection between the charger’s output plug and lamp’s charging socket is good |
b | Using too long to achieve life | Replace the lamp |
c | Charger does not work | Check if the indicator of charger is good and also check if the connection of charger’s AC power endpoint is good |
3, The lamp is off suddenly when it works
Reason:short circuit or battery power runs out
Treatment:turn off the main light source,restart,then the lamp
should be on (remark:
the lamp has a circuit breaker);It is is still off after
restarting,please charge the battery.
If it still doesn’t work after charging,it means the lamp has some
problems,delivery the
lamp to factory for repair.
