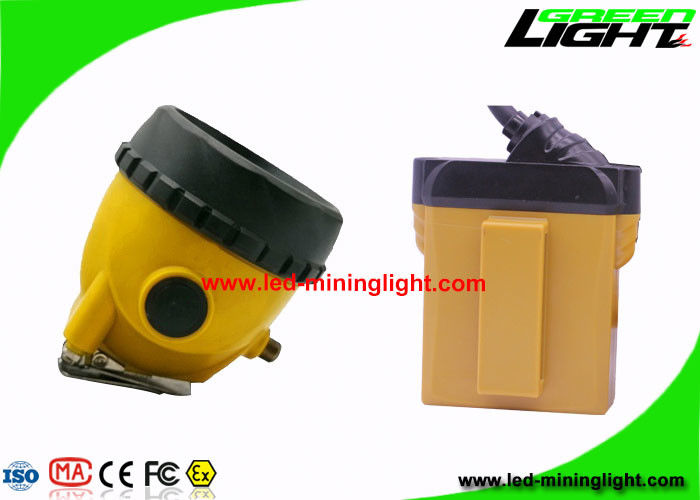

High Safety 25000 Lux Rechargeable Mining Headlamp for Hard Hat 4
Level Lighting Mode
Function of GL12-A 25000Lux mining lamp:
1. Advocate the lamp two levels of light. (ML and AL)
2. Low power Warning Function.
3. SOS mode.
4. Support 2A charger.
5. Drop resistance: Military engineering plastic shell.
6. Usage with Hazardous area.
Waterproof, explosion proof and compact resistant and flame
retardant.
7. aluminum led light cup, good heat dissipation effect.
Main Features for Model GL12-A mining headlamp with cable:
1. Brightness: 25000lux high beam headlamp with cable.
2. Portable: lightweight 490g and big battery capacity 10.4Ah.
3. Fast charging: 2A charger, charging time less than 8hours
4. Better lighting spot: adopt aluminum lighting cup.
5. SOS for low power warning function for safety headlamp.
6. Good Appearance and High quality material.
7. Enviromental: Lithium battery with short circuit protection,
over charging protection and over discharging, free mataince long
battery life span.
8. OEM and ODM available. Write the request to cap lamps, such as
clients company name, LOGO, seriey No and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve
and current to design the Light Beam.
Main parameter of rechargeable led headlamp:
| Specification | GL12-A |
| Light sources | One main light and two auxiliary lights |
| Rated voltage | 3.7V |
| Battery capacity | 10.4Ah |
| Main light current(strong light) | 850mA |
| Main light current (working light) | 450mA |
| Power of the main light(strong light) | 3W |
| Power of the main light(working light) | 1.8W |
| luminous(strong light) | 348Lum |
| luminous(working light) | 240Lum |
| Brightness of the main light(strong light) | 25,000Lux |
| Brightness of the main light(strong light) | 15,000Lux |
| LED lifespan | 10,000hours |
| Battery cycles | 1200cycles |
| Working time | 13-15hours |
| Cable length | 1.2m or 1.6m can be customized |
| Weight | 490g |
| Water-proof grade | IP68 |
| Light switch | Microswitch |
| Certified | CE&ATEX, ROHS |
Application
1. Underground Site: Coal / Gold /Silver / Metal Mines and
Tunneling Project.
2. Outdoor: Camping/advanture/fishing at night, railway repair at
night.
3. It has SOS lighting mode, if you have any emergency, you can use
it for help.
