    5.6Ah Li ion Battery Rechargeable Miners Headlamp , High Lumen Rechargeable Cap Lamps

    Ask Lasest Price
    Brand Name : Green Lighting
    Model Number : GST-7C
    Certification : CE/ATEX/EXIBII
    Price : Negotiation
    Payment Terms : MoneyGram, T/T, Western Union
    Supply Ability : 5000pcs/month
    • Product Details
    • Company Profile

    5.6Ah Li ion Battery Rechargeable Miners Headlamp , High Lumen Rechargeable Cap Lamps

    5.6Ah Li ion Battery Rechargeable Miners Headlamp ,High Lumen Rechargeable Cap Lamps

    1.Features for Rechargeable Miners Headlamp
    a). 1.3W CERR LED light source, 5.6Ah Li ion Battery .
    b). The 3mm toughened glass, light weight , free of maintenance .
    c). Three type charger : our GST-7C special charger,input 110-250V,50-60HZ,output:4.2V 1000MA
    d).Explosion-proof and waterproof , current shock proof, moisture proof , and impact proof.
    e).safety : EXia IIC4(zone1 and zone 2)
    f).
    1pc main light and 6pcs auxiliary lights .

    2.Specification of miner cap lamp

    GST-7B Specification
    TypeLED Mining Light
    LightMain LED quantity1pc
    Auxiliary LED quantity6pcs
    Main light power1.3watt
    Main light current350mA
    Main light Luminous flux156LUM
    Brightness of the main light
    (Initial Lighting degree)
    8000LUX
    Main light Life span8000hours
    Auxiliary light life span>5000hours
    Auxiliary light power0.4watt
    BatteryTypeLithium ion battery
    Quantity3 cell
    Rated capacity5.6Ah
    Rated Voltage3.7V
    Cycles times1000 cycles
    Continuous working time16 hours
    Short circuit protect time< 320uS
    Charging time3.5h (by charger or USB)
    Usually SpecificationColorgrey+Blue
    MaterialPC
    Main cable length0.38m
    chargerUSB, traditional charger , fast interlligent charger
    Weight375g
    Water-proof gradeIP68
    CertifiedCE,ATEX,EXIB II M1
    Traditional/
    Fast intelligent
    charger
    AC input100-240V , 50-60Hz
    DC input7-30V
    DC output voltage4.2v +_0.05v
    DC output current1000mA /2000mA
    AC PlugUS,EU,UK and AU standards all countries
    Dimensions56*76*116mm
    Weight215g

    The LED cap lamp with two lighting modes. You can push on the switch button on lamp head to change from the main lighting source to subsidiary lighting source or to turn off the lamp .

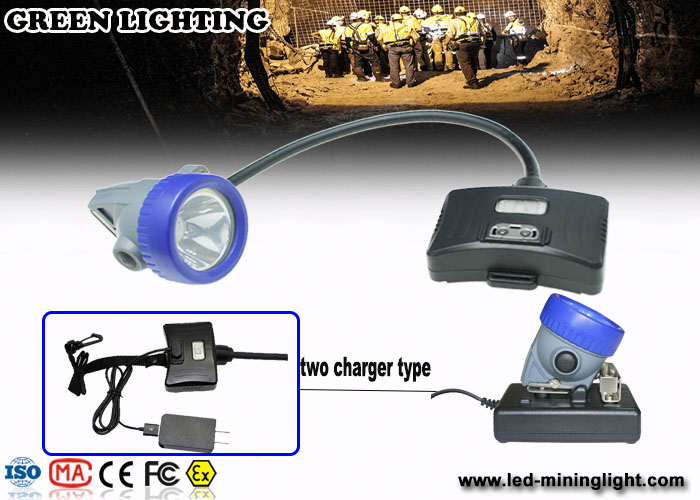

    3.Rechargeable LED Headlamp Product Images


    This lamp have two charger , one type is USB Charger , other type is Traditional/Fast intelligent charger .

    Intelligent charging protection: anti-overcharging, current control, short circuit protection and anti-overheating.

    4.Usage of Rechargeable LED Headlamp
    Widely used in petrochemical, chemical, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.

    5.Troubles and troubleshootings

    Trouble descriptionTrouble analysisTroubleshooting

    Light is not on when pressing
    the button

    Battery power is used up or
    Automatic opening protection

    Charge the lamp

    Working time is less than
    12 hours

    Battery is not fully charged

    Make sure the lamp well
    connected to the charger
    when charging

    Longer charging timeThe charging points poor contact

    Clean the charging points
    and the slot

    Low illuminanceDirty lensClean water wash lens



    6.FAQ

    Q: 1. Can I have a sample order?
    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q: 2. What is the lead time?
    A:The Sample lead time is 7-10days, The mass production delivery time needs 25-30days.


    Q: 3. Do you have any MOQ ?
    A: Our MOQ that 1 pc for sample; The mass production MOQ is 50pcs.(Depends on different type battery/battery pack) , the customized goods MOQ is 100pcs .


    Q: 4. How do you ship the goods and how long does it take arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-7 working days to arrive.


    Q: 5. How to proceed the order when customer order products?
    A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.


    Q: 6. How to make this payment?
    A: TT, Paypal, Western Union,MoneyGram, etc .
    You will payment by Wechat , your agent .


    Q: 7. Do you offer guarantee for the products?
    A: Yes, we offer one year guarantee for the products.


    Q: 8. Do you accept OEM/ODM?
    A: Yes, it’s available. we will offer the customized service.
