ABS Light Weight LED Professional Miner Cap Lamp, Mining Lamps
1. Characters for Cordless Mining Lights
High power LED light source, extra long lifetime (50000 hours);
Intelligent charging protection: anti-overcharging, current
control, short circuit protection and anti-overheating;
Water proof, current shock proof, moisture proof and impact proof;
Wateproof grade : IP68
Anti-explosive grade : Ex ia
High Quality Material : Germany Bayer PC
Portable Light Weight : 158g , similar to the weight as a cell phone, more portable.
Multi-function lighting modes : main light - auxiliary light
2: Specifications:
| Item | Value |
| Model | GL2.5-C |
| Light source | 1pc main light and 6pcs auxiliary lights |
|
| Battery capacity | 2.8Ah |
| Rated Voltage | 3.7V |
| Main light current | 230mA |
| Power of the main light | 0.85W |
| Illuminous | 110LUM |
| Brightness of the main light | 6000lux |
| Life span for main LED | 100000hours |
| Battery cycles | 1000 cycles |
| Working time | 13 hours |
| Weight | 158g |
| Water-proof grade | IP67 |
| Certified | CE,ATEX,EXIB II M1 |

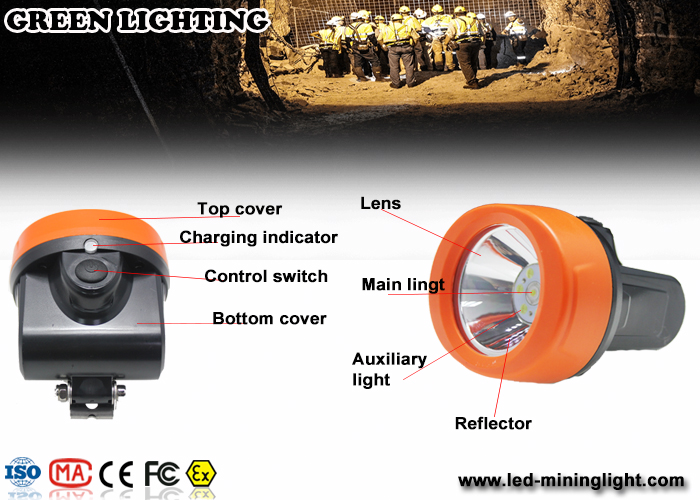

3. Products parts pictures
Instructions for use
1) In the first time using lamps, pls use our special charger or
accorded charging rack to charging lamps firstly.when the lamps are
under charging,charger indicated light is RED COLOR,when the
charger indicated light turned GREEN COLOR,it means that charger
have finished charging.
2) Our KL2.5-C cordless cap lamp has one main light and six
auxiliary lights. It has two lighting modes.
When you press the button firstly, the main light is on , press
secondly, the lamp is off, press thirdly,
the auxiliary lights is on, press fourthly, the lamp is off.
KL2.5-C cordless cap lamp just has one main
light, and has one strong brightness lighting.
4. Our products can be widely used for :
- camping, travelling, cycling
- tool, maintenance lighting
- fishery, diving, fire-fighting
- military, architecture, living
- furniture, farm lighting
- night fishing, car-carrying, road and railway lighting, forest farm
5. Product Advantages:
Safety : Over-charging protection , over-discharging protection, protection
in electrical short-circuit,
automatic power-off on the socket , 100,000 hours LED’s Lifetime
Portability : All-in-one structure, Small in size , light in weight (only 158g
for whole product),
inductive charging, easy usage
Efficiency : more than 15hours at full brightness, over 80hours at back up
led brightness.Over 6000lux
Brightness
Environmental : Li-ion battery is free for maintenance, and the material of li-ion
is environmental, use
1Watt high power LED as the main light, and 6pcs backup LED’s to
save power
Economy : three times longer than lead and acid cap lamp and saving in
maintenance makes the product
more compatible in price
Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous
discharging time: more than 15hours at full brightness, over
80hours at back up led brightness.
Type of protection : IMI EXia IICT6 (Zone 1 and 2)
Protection category : IP68
6: Cautions
- It is prohibited to assemble the lamp head or to replace the
lighting source inside the mine.
- Since the charger is not equipped with anti-explosion mechanism, it
is prohibited to charge the lamp inside the mine.
- Only maintenance personal can disassemble or repair the lamp and
the charger.
- It is strictly prohibited to throw the battery into fire or to heat
it.
- No shortcut the battery or to disassemble the battery.
- Dispose used batteries suitably.
7. RFQ
Q: What daes IP mean?
A: IP (Ingress Protection) classifies the degrees of protection
provided against the intrusion of the bulb. Thr first cliper
indicates the bulbs resistance to solid intruders (like dust), and
the second cipher indicated the bulbs resistance to water.
Q: What is the distinguishing feature of explosion-proof?
A: Meet GB3836-2000 "explosive gas environment use electrical
equipment" stand.
Q: What is the advantage of environmental protection?
A: The LED solid state light source, no lead and mercury, no
radiation pollution and recyclable.
Q: What is emergencyj device?
A: Optional configuration, integration design, safety, long life
span, can be removed from the DC power supply system.
Q: What is Lux:
A: LUX is a measurement of, how much luminous flux is spread over a
given area.
Q: What is Lumen?
A: Lumen (Lm) is a measure of the total amount power of the light
that is emitted at a1 meter radius at a 360 degree angle from a
light source.
Q: How long is 50,000 hours?
A: There are 8,760 hours in a year, so this is what 50,000 hours
works out to be, depending on hours of operation.
Bulb is on 24 hours per day 5.7 years /Bulb is on 18 hours per day
7.6 years
Bulb is on 12 hours per day 11.4 years /Bulb is on 8 hours per day
17.1 years
