    Nylon Material Circuit Breaker Lock , 16g Switch Breaker Lockout Device

    Ask Lasest Price
    Brand Name : Green Lighting
    Model Number : ZC-D05
    Certification : OSAH, CE, ISO
    Price : Can be negotiated
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs / month
    Delivery Time : 5 - 7 Days
    • Product Details
    • Company Profile

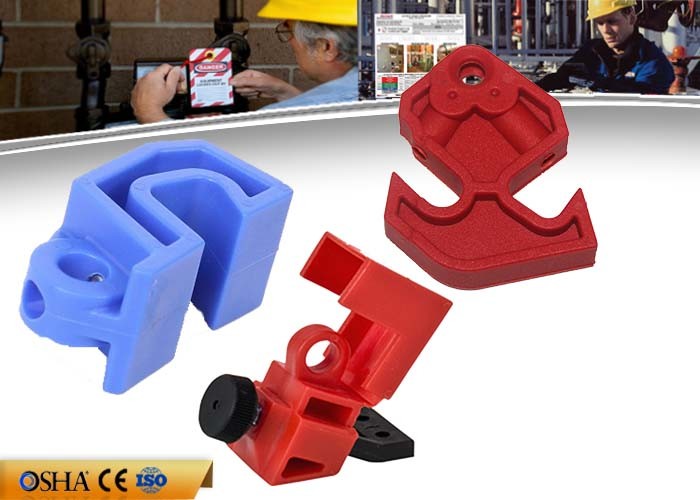

    Nylon Material Circuit Breaker Lock , 16g Switch Breaker Lockout Device

    Nylon Material Easy - To - Use Circuit Breaker Lockout for switch Can OEM


    Easy - to - use breaker Lockout

    a. Material: Made of durable and tough impact nylon.

    b. Can use in all kinds of middle type built - in trip moulded case circuit breaker lockout.

    c. Use thumbscrew to clamp lockout securely onto switch tongue,then pull cover and lock in place to prevent clamp from being loosened.

    d. The lockouts can take padlock with a shackle diameter up <= 7mm.d. Can lock out all kinds of circuit breaker lockout.

    e. Can lock out by using screw driver.

    g. Size , color, material, logo can customized.



    Part Code

    Description

    ZC-D05

    Can lock handle width <=12mm medium size moulded case circuit breakers
    ZC-D06

    Can lock two - pole, three - pole, four - pole miniature circuit breakers

    ZC-D07Can lock handle width <=7.7mm single - pole miniature circuit breakers
    ZC-D08 - 1Can lock handle width <=5mm small and medium size moulded case circuit breakers
    ZC-D08 - 2Can lock handle width <= 5mm small and medium size moulded case circuit breakers
    ZC-D09Can lock big circuit breakers

    Related Electrical Lockout in differnt Material, Size


    Model NoDescription
    ZC-D01Miniature Circuit Breaker Lockout, Pin Out Standard
    ZC-D02Miniature Circuit Breaker Lockout, Pin In Standard
    ZC-D03Miniature Circuit Breaker Lockout, Tie Bar Lockout
    ZC-D04Miniature Circuit Breaker Lockout, Pin Out Standard
    ZC-D10Universal Miniature Breaker Lockout, Multi-funcational MCB lockout
    ZC-D11Clamp-on Breaker Lockout, 120-277V 15*13*137.5px
    ZC-D12Clamp-On Breaker Lockout , 480-600V 25.5*17*225px
    ZC-D13Clamp-On Breaker Lockout, 480-600V Oversize Lockout 10.5*8*250px
    ZC-D06Moulded Case Circuit Breaker Lockout, 51mm*25mm*23mm
    ZC-D07Moulded Case Circuit Breaker Lockout, 125mm*63mm*40mm
    ZC-D21Snap-On Breaker Lockout , 120V, 55mm*9mm*21mm
    ZC-D31Plug Lockout , 110V,220V,550V
    ZC-D41Plug Lockout , 110V,220V,550V
    ZC-D51Emergency Stop Lockout , 22mm
    ZC-D52Emergency Stop Lockout , 30mm
    ZC-PM01Penumatic Quick-disconnect Lockout, Fitted with 6.4mm, 9.5mm & 12.7mm screwed joint
    ZC-PM11Air Source Lockout, Available for 8-45mm vales
    ZC-PM21Cylinder Tank Lockout,
    ZC-PM31

    Gas Cylinder Lockout


    Delivery detail:


    According to your situation, you can choose different modes of transport, such as sea freight, Air freight, Express.


    Contact information:


    GREEN LIGHTING ELECTRONICS CO.,LTD
    No2 Bldg, Da Pu Industrial, Long Dong Community, Long Gang District, Shen Zhen City, China.
    Tel: 0086-755-84829400
    Fax: 0086-755-84820206

    Cell / Whatsapp: +86-13640986035

    Contact Penson: Eileen

    Skype: zcsafety11@outlook.com

    Web: www.led-mininglight.com
