Customized Semi - Corded LED Headlamp , Coal Mining Cap Lights
Advantaged:

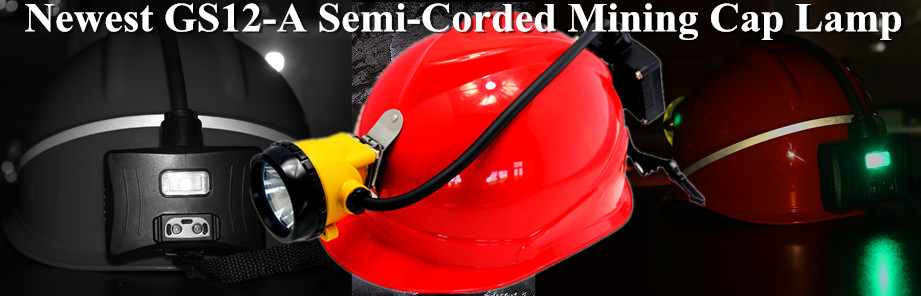

GS12-A Semi - Corded LED Miner caplamp
1. Newest developed miner lamp
2. Rear warning light, RGB is available.
3. 30cm cable length, also can customized according customers
requirements.
4. Charger: USB charger (USB cable),cradle charger (battery part) or cradle
charger (lamp head part).Any of them are avaliable.
Product Details:
1. This lamp uses 1pc Cree led as main light,2pcs SMD leds as the
auxiliary lights
2. Designed with high capacity 6.8Ah rechargeable Li-ion battery.
3. It has three levels power as High-15000lux, Mid-10000lux ,
Flashlight.
4. It design with Rear warning light,When the light is on,the Rear
warning light will light up at the same time.This function can make
your worker more safe.It also can as charger indicator when
charging.
5. It uses 30cm cable to connect headlamp and battery
housing!Length of the cable can customize.
Technical Specifications:
| Light source | 1pc 1.6W Cree led and 2pcs SMD leds |
| Battery capacity | 6.8Ah |
| Rated Voltage | 3.7V |
| Main light current | 450mA |
| Power of the main light | 1.6Watt |
| Illuminous | 208LUM |
| Brightness of the main light | 15000lux |
| Life span for main LED | 10000hours |
| Battery cycles | 1200 cycles |
| Working time | 16 hours |
| Weight | 396g |
| Water-proof grade | IP68 |
| Certified | CE&ATEX |
Series Semi - Corded Miner Cap Lamps:
GS12-A: 6800mAH Panasonic, yellow and black colours. IP68
GS5-C: 6400mAH Panasonic, yellow colour. IP68
GST-7B: 5600mAH Panasonic, yellow colour. IP67
GS5-B: 5600mAH Panasonic, yellow colour. IP68
Packing:
packing by colorful box of unit lamp with USB charger,
30pcs/carton, carton size: 36cm*44cm*44cm. If you want to designe
your own box and carton, please feel free to contact us.
After sales service:
All our products have one year warranty. If the products involve in
some no-man-made problems within one year , pls send back the
deffective products to us, we will repair the products for you on
free. If over one year, we can also repair the deffective products
for you,and you just pay a little changing spare parts fee. If you
have some inquiry,suggestion or need some help,you can feel free to
contact with us by email or telephone.
Product Pictures:
Why choose us ?
About us
Our mission:To lead a new era.
Our vision:To create a world famous brand, to disseminate the
Chinese culture.
Our slogan:To grow together! To achieve success together
Advantage
1) Super brightness: our brigtness is up to 25000lux, 2-5 times brightness of common cap lamps
2) Super long life span: main light life span is 30000hours, auxilary light life span is 20000hours
3) Super long working time: more than 13 working hours, we can adjust working time by adjust working current
Top quality material
1) CREE led: advanced cree led
2) Germany Bayer PC material make the lamps durable, feels good
3) Panasonic or ATL battery: imported from Japan, it is applied in Apple notebook
Advanced equipment
1) SMT: Surface Mounted Technology, Wave Soldering
2) Smart Oscilloscopes: imported from USA, USD50,000, it is usually used in Academy
3) Battery Cycle Tester: 10 times of cycly test for 80 hours
4) CNC (Computer Numerical Control) and Injection machine: imported from Taiwan
Warranty and after-sales service
1) Warranty: 2 years, for defective one, we will replace a total
new cap lamp during warranty time
2) After sales service: will deal with your complaint at first time,
give you solution within 5 working days
3) Free samples: free samples will be provided when our new models come out
4) Market support: we can support you to do advertisment in local
magazine and provide samples with
big discount for exhibition
R & D
1) We have built a team of 6 qulified engineers to get all the
certificates in the world
2) Every year we invest 10% annual turnover in our R&D
