Multi Function Red Cable Lock Out , PC Automatic Telescopic Lockout Cable

    Buy cheap Multi Function Red Cable Lock Out , PC Automatic Telescopic Lockout Cable from wholesalers

    Buy cheap Multi Function Red Cable Lock Out , PC Automatic Telescopic Lockout Cable from wholesalers
    • Buy cheap Multi Function Red Cable Lock Out , PC Automatic Telescopic Lockout Cable from wholesalers

    Multi Function Red Cable Lock Out , PC Automatic Telescopic Lockout Cable

    Ask Lasest Price
    Brand Name : Green Lighting
    Model Number : ZC-L33
    Certification : CE, OSHA
    Price : Negotiate
    Payment Terms : T/T or Western Union in advance, or 30% deposit, balance T/T based on copy of B/L for sea shipment
    Supply Ability : 5000 pieces in a month
    Delivery Time : sample order at once, bulk order within 15-20 working days
    • Product Details
    • Company Profile

    Multi Function Red Cable Lock Out , PC Automatic Telescopic Lockout Cable

    Multifunction Red PC Automatic Telescopic Safety Cable Lock Out

    Features:


    ZC-L33 Automatic Telescopic Cable Lockout

    1. It's shock resistant withstand high or low temperature.

    2. It can have a long-term use in the environment of -35°C to 85°C.

    3. The cable can be extended according to your need within 1.8M.

    4. Lightly press the winding switch button, the cable can automatic retract.

    5. With rebound system inside the button, the tension is strong when using.

    6. The cable is made by material control accessory stamping technology, fixed permanently and used assuredly. Electroplated coating makes rustproof surface.

    7. Logo or other information you need can be customized.


    Product Details:


    1. Matrerial

    Automatic retractable cable lockout is made of polycarbonate Plastic (PC),impact resistance,abrasive resistance, heat resistance,low temperature resistance ,can withstand the temperature of -35°C to85°C.


    2. Function

    Automatic retraction ,press the winding switch button,the cable can automatic retract and hidden in the lockout ;maneuverable,portable ,durable.


    3. Parameter

    Dimension: 110mm*110mm*40mm

    Cable Diameter: 2.0mm
    Cable Length: 1.8m
    Socket: 7*4.5mm
    Padlock Shackle Diameter: ≤7mm
    Padlock Quantity: 2PCS

    Brand

    Part Code

    ColorMaterial
    Green Lighting or OEMZC-L33Red, can custom made other colorsSteel and PA
    Lockout weightLockout sizeCable DiameterUsable Length
    200g110*110*402.0mm1.8m

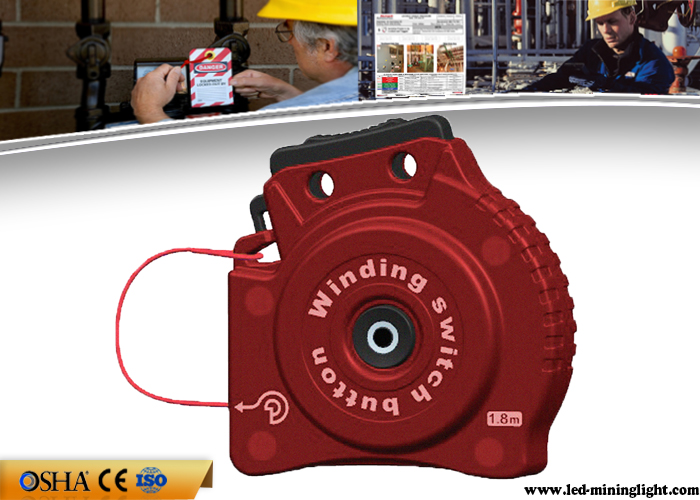

    4. Cable lockout Image


    Related Cable Lockout:


    Model NoDetails
    ZC-L01Multipurpose Cable Lockout ,2.4m, 1/8''
    ZC-L11Adjustable Cable Lockout with 1.8m 6mm dia steel cables
    ZC-L12Adjustable Cable Lockout with 1.8m 3mm dia steel cables
    ZC-L21Economic Cable Lockout
    ZC-L41Wheel type cable lockout, assebled without tools
    ZC-L33Size: 110*110*40cm, cable thickness 2mm, length 1.8m. Available for padlock shackle maximum diameter 7mm, cab be locked out by 2 pieces padlocks.

    How to Use this cable lockout:


    1. First, press the top button then it will upspring. The lockout opens up and the cable can be extended according to your need.
    2. Lightly press the winding switch button, the cable can automatic retract.
    3. Not press the winding switch button, the cable will stop automatic retracting, press the top button and hang on safety padlock through the hole on the top button at last.


    Application:


    1. Land Drilling

    2. Marine Oil

    3. Chemical Refining

    4. Industrial Manufacturing

    5. Power Transmission and Distribution.


    Our Cable Lockout Tagout Safety:


    Our range of cable lockouts are ideal devices for securing most valves,isolators and industral machines.
    Manufactured from an impact copolymer polypropylene with stainless steel internal parts and PVC coated steel cable,accepts 4-8Padlocks for multiple lock applications.
